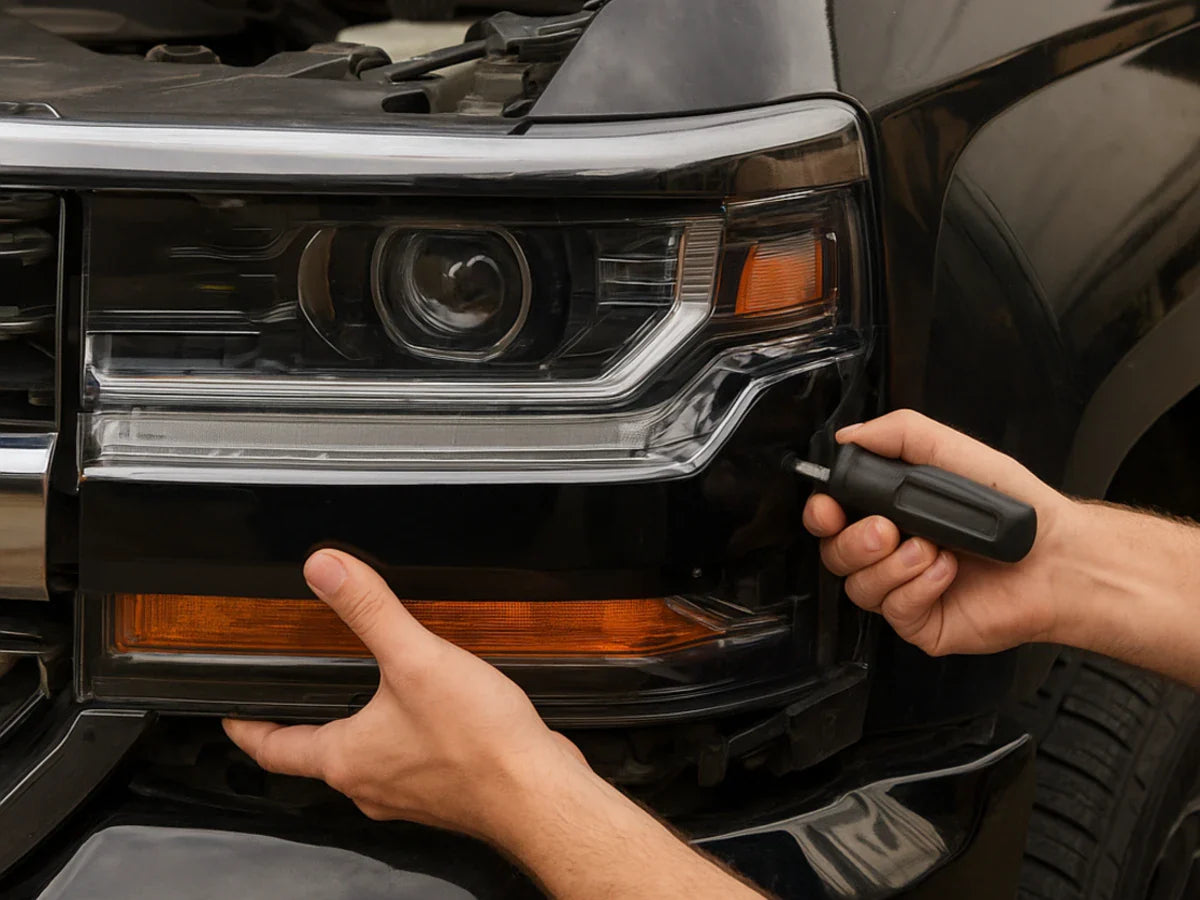

Step-by-Step Guide: Installing Your 2007-2013 Chevy Silverado Headlight Assembly

Replacing your original Chevy Silverado headlights is one of the most effective upgrades for your 2007-2013 model. Over time, factory halogen assemblies can become dim, yellowed, or hazy, which significantly reduces nighttime visibility and detracts from your truck's appearance.

Upgrading to a new Chevy Silverado headlight assembly not only restores critical clarity but also enhances your driving safety. If you've chosen a Hawkglow direct-fit unit, you've selected a product specifically engineered for a seamless installation process.

Many owners hesitate at the thought of complex wiring or modifications. This guide is here to demonstrate that for this Chevrolet Silverado headlight upgrade, none of that is necessary.

We will walk you through the entire process, step-by-step, to properly install your new Chevrolet Silverado LED headlights. This is a 1:1 factory-style replacement that requires NO wiring cutting and NO modifications.

Preparation: Tools and Parts Verification

Before you begin the installation, we recommend gathering all necessary tools. This preparation ensures the process is smooth and efficient, helping you get your new Chevy Silverado headlights installed without interruption.

Required Tools

Having the correct tools on hand is the first step to a professional-quality installation. You will not need specialized equipment, just a few common garage tools:

• Ratchet Wrench

• 10mm Socket: This will be used for all bolts on the grille and headlight assembly.

• Socket Extension: This is crucial for accessing the third, hidden bolt on the side of the headlight housing.

• Trim Removal Tool: A plastic tool is preferred to avoid scratching your paint or grille. (A flat-head screwdriver wrapped in tape can work in a pinch).

Verify Your New Headlight Assembly

Open your Hawkglow box and take a moment to inspect your new Chevy Silverado headlight assembly units.

• Confirm you have one (1) driver-side unit and one (1) passenger-side unit.

• Check that all wiring harnesses and plugs (Low Beam, High Beam) are present and match the product photos.

• Ensure there is an open socket for transferring your original turn signal/DRL bulb.

Installation Guide: A Four-Step Upgrade

Here is the complete process for replacing your 2007-2013 Chevrolet Silverado headlight units. We will break it down into four simple stages.

Step 1: Remove the Original Headlight Assembly

First, we need to remove the factory housing. This requires accessing three bolts and loosening the grille.

1. Open the Hood: Start by opening the hood and locating the plastic radiator shroud at the front of the engine bay.

2. Remove Shroud: Using your trim removal tool, gently pry up the plastic clips (usually 6-8) that secure this shroud. Lift the shroud off and set it aside.

3. Loosen Grille: Locate and remove the 10mm bolts (usually 4-6) along the top of the grille. You do not need to fully remove the grille; just pull the top edge forward gently. This gives you the clearance needed to work on the Chevy Silverado headlight assembly.

4. Remove Headlight Bolts: Each Chevrolet Silverado headlight is secured by three 10mm bolts.

   • Top Bolts (2): Remove the two bolts that are easily accessible on the top of the headlight housing.

   • Side Bolt (1): This is the crucial one. The third bolt is located on the outer side of the assembly, near the fender. Use your 10mm socket with the extension bar to reach in (either from the side or through the fender well) and remove it.

5. Pull Out Assembly: With all three bolts removed, firmly grip the old headlight assembly and pull it straight forward out of the vehicle.

Step 2: Disconnect and Match the Wiring

With the old housing pulled out, you can now access the rear wiring. This part is simple disconnection and transferring one bulb.

1. Disconnect Main Plugs: Locate the primary electrical connectors plugged into the back of the old Chevy Silverado headlights. These usually include the high beam and low beam sockets. Press the release tab on each connector and firmly pull them out.

2. Transfer Turn Signal Bulb: Identify the turn signal / DRL (Daytime Running Light) bulb socket. This is typically the one you grip and twist (counter-clockwise) to unlock.

3. Remove this entire socket with the bulb still in it from the old housing. You will be reusing this bulb in your new Chevrolet Silverado LED headlights assembly.

Step 3: Install the New Hawkglow Headlight

This is where your Chevrolet Silverado LED headlights upgrade comes together. This plug-and-play design means no complicated wiring.

1. Insert Turn Signal Bulb: Take the original turn signal/DRL bulb and socket you removed in Step 2. Align the tabs with the corresponding opening on the back of your new Hawkglow Chevy Silverado headlight assembly.

2. Insert it firmly and twist it clockwise to lock it securely in place.

3. Connect Main Plugs: Now, take the high beam and low beam connectors from your truck's wiring harness.

4. Plug them directly into the matching male connectors on the back of the new Chevrolet Silverado headlight unit. (Refer to the wiring diagram on the product page if needed, but they are typically direct matches).

5. Ensure each connection is pushed in completely until it clicks or feels fully seated.

Step 4: Fasten and Test the Installation

Do not fully reassemble the grille yet! Testing is the most critical final step.

1. Test All Functions: Before pushing the Chevy Silverado headlights back into place, return to the driver's seat.

2. Turn on your vehicle and cycle through all lighting functions: Low Beams, High Beams, Turn Signals, and Daytime Running Lights (DRL).

3. Verify that every function works correctly on the newly installed side.

4. Secure the Assembly: Once confirmed, carefully align the new Chevy Silverado headlight assembly with the mounting holes and guide pins on the vehicle.

5. Slide the unit firmly into place.

6. Re-install Bolts: Re-install the three 10mm bolts (two on top, one on the side) to secure the housing. Do not overtighten; just make them snug.

7. Reassemble Grille: Push the grille back into its clips, re-install the 10mm bolts along the top, and re-secure the radiator shroud with its plastic clips.

8. Repeat: Now, simply repeat Steps 1-4 for the other side of your truck.

Post-Installation: Aiming Your New Headlights

Your installation is complete, but there is one final, critical step: aiming your headlights. Proper aiming ensures your new, brighter Chevrolet Silverado LED headlights illuminate the road effectively without blinding oncoming drivers.

This step is mandatory for safety and is often overlooked.

Why Headlight Aiming is Essential

Even a perfect installation can result in a misaligned beam. The powerful light from your new Chevy Silverado headlights must be directed onto the road, not into the eyes of other motorists.

A properly aimed Chevrolet Silverado headlight provides maximum visibility down-road and prevents dangerous glare.

How to Aim Your New Silverado Headlights

You can achieve a precise aim at home with a few simple measurements.

1. Find a Level Surface: Park your Silverado on level ground facing a flat wall or garage door, precisely 25 feet away (measure from the front of your headlights to the wall).

2. Mark Centerlines: Use masking tape to mark two centerlines on the wall:

   • Horizontal Line: Measure from the ground to the center of your Chevy Silverado headlight assembly (the projector or main bulb). Mark this height on the wall.

   • Vertical Lines: Mark the vertical centerline of your truck, and then mark the center of each headlight on the wall.

3. Turn on Low Beams: Turn on your low beams. The top of the light beam's cutoff (the sharp line between light and dark) should sit at or just slightly below (about 2 inches) your horizontal tape line.

4. Adjust as Needed: On the back of your new headlight housing, you will find an adjustment screw (or dial). Use a Phillips screwdriver or the appropriate tool to turn this screw.

   • This adjuster typically controls the vertical (up/down) aim. Turn it slowly until the beam's cutoff aligns perfectly with your target on the wall.

5. Check Both Sides: Ensure both the driver and passenger side beams are level with each other.

Enjoy Your New Vision and Upgraded Style

Congratulations. By completing this installation, you have successfully upgraded your truck with a new, high-performance Chevy Silverado headlight assembly.

You've addressed one of the most critical aspects of your 2007-2013 model, replacing dim or hazy components with a solution that provides superior illumination and driving safety.

This guide has demonstrated that our direct-fit engineering makes a professional-grade result achievable for any owner. You've given your truck the clear visibility and modern aesthetic of Chevrolet Silverado LED headlights without complex wiring or modifications.
