Ford F-150 Headlight Assembly Buying Guide
Choosing a Ford F-150 headlight assembly is not just a year match. The original factory headlight type matters just as much as the model year. A 2015 F-150 with factory halogen headlights may use a different connector and lighting setup than a higher-trim truck with factory LED or HID-style lighting.
BLUF: Match your Ford F-150 by year, factory headlight type, connector, and product notes before buying. Hawkglow Ford F-150 headlight assembly options are best suited for compatible factory halogen trucks that need a complete left and right replacement or an LED projector-style upgrade. Do not assume factory HID, Xenon, or factory LED trucks use the same assembly.
Ford F-150 headlight assembly fitment notes

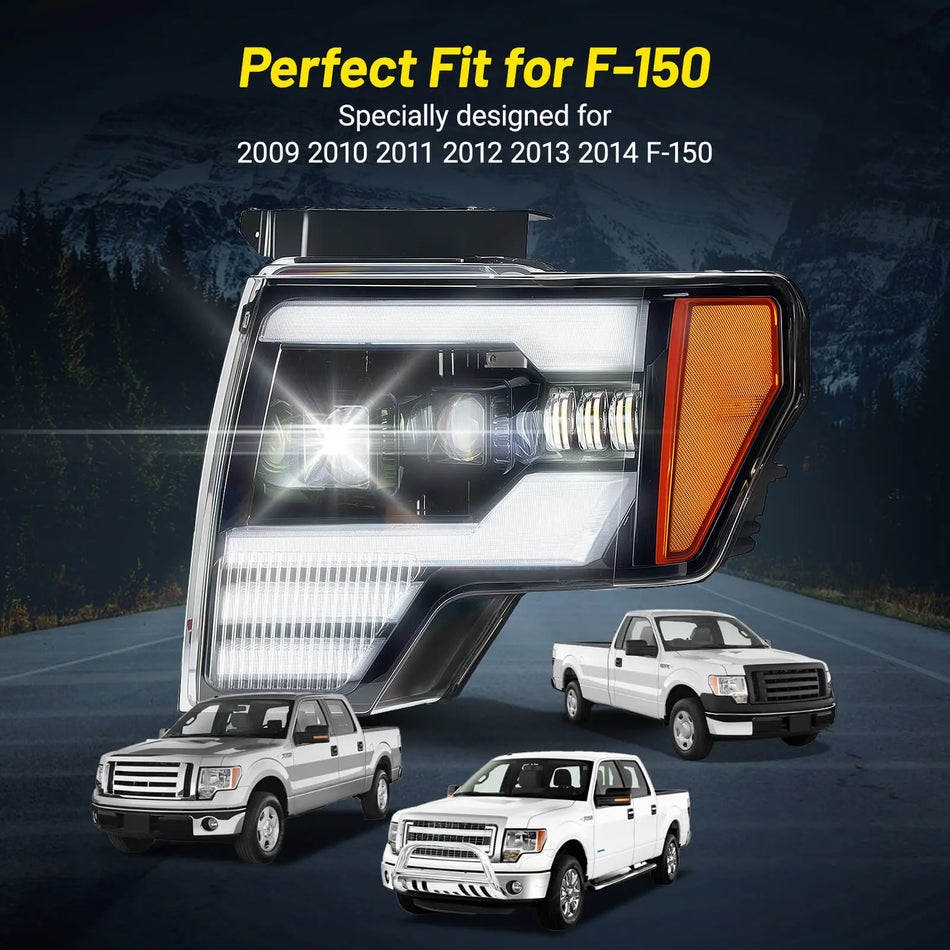

Start with the basics: year, make, model, trim, and original factory lighting package. The main fitment range for these Ford F-150 headlight assembly options includes select 2009–2014 and 2015–2017 Ford F-150 trucks with factory halogen headlights.
- Check the model year before comparing style or price.
- Confirm the truck is a Ford F-150, not an F-250, F-350, Super Duty, or F-650.
- Confirm the original headlight setup is factory halogen unless the product notes clearly say otherwise.
- Compare the connector and wiring notes before removing the old assembly.
- Check whether the item is sold as a pair or as a single left or right side replacement.
Mechanic’s note: On F-150 trucks, the trim badge does not always tell the whole story. I always check the original headlight type and connector before ordering. Two trucks from the same year can have different factory lighting packages.
Factory halogen, HID, Xenon, and factory LED differences
The most common mistake is treating every F-150 headlight as interchangeable. Factory halogen trucks usually have a simpler lighting setup than factory HID, Xenon, or factory LED trucks. A housing designed for a halogen truck should not be forced onto a truck with a different factory lighting system.
| Factory configuration | What to check | Buying note |
|---|---|---|
| Factory halogen | Original bulb housing, connector style, year range, left/right pair | Best match for most Hawkglow F-150 replacement assemblies when product notes confirm compatibility. |
| Factory HID or Xenon | Ballast, wiring, original lamp type, trim package | Do not treat as a direct halogen replacement unless the product specifically supports it. |
| Factory LED | LED module, connector, control functions, DRL behavior | Often requires a different assembly and wiring approach. Check product notes before ordering. |
| Aftermarket modified lighting | Previous wiring changes, added relays, spliced harnesses, error lights | Inspect the truck before purchase. Prior wiring changes can affect installation and function. |
Assembly vs bulb replacement
A complete headlight assembly replaces the housing, lens, internal lighting layout, and mounting points as a unit. This is different from replacing only a bulb. If your lens is yellowed, cracked, leaking, or the reflector is worn, a bulb alone may not solve the problem.
A Ford F-150 LED headlight assembly is usually a better choice when the original housing is damaged or when you want updated projector-style lighting with DRL or turn signal features. A bulb replacement may be enough only when the housing is still clear, sealed, and properly aimed.
DRL, turn signal, and connector checks
Daytime running lights and sequential turn signals depend on the product design and wiring layout. Some functions may use an included harness or require extra attention during installation. Never assume every lighting function will work the same way across every trim.
- Check whether the DRL is white, amber, or dual-color.
- Confirm how the turn signal connects to the vehicle harness.
- Inspect the original connector before removing the factory assembly.
- Do not cut or splice wiring unless the product instructions clearly call for it.
- If the truck has warning lights, flicker, or previous wiring changes, inspect the circuit before installation.
Fitment warning: Do not buy only by year or exterior style. A 2015–2017 F-150 with factory LED lighting is not the same as a 2015–2017 F-150 with factory halogen lighting. Connector mismatch is one of the easiest ways to order the wrong headlight assembly.
Installation notes without turning this into a full install job
Most buyers choose a complete assembly because it keeps the job cleaner than rebuilding an old housing. Still, good fitment depends on careful prep. Compare the new assembly with the old one before fully tightening anything. Check mounting tabs, connector position, left and right orientation, and harness routing.
After installation, aim the beam. Even a well-built projector housing can glare or leave dark spots if it is not aimed after the truck is back on level ground. This step matters for visibility, road manners, and inspection confidence.
Moisture and condensation expectations
Headlights deal with heat, rain, car washes, cold nights, and pressure changes. A light haze that clears after normal use can happen with many vented housings. Standing water, large droplets, or fog that does not clear is different and should be inspected.
- Make sure rear caps, seals, and vents are seated correctly.
- Do not block breather vents with tape, sealant, or wiring.
- Check for pinched seals after installation.
- After heavy rain or washing, inspect both left and right housings.
DOT, SAE, and road-use compliance notes
Lighting rules can depend on the vehicle, state inspection standards, beam aim, and the way the assembly is installed. Avoid mixing a road-use headlight assembly with unsafe wiring, incorrect bulbs, or an unadjusted beam pattern.
Hawkglow headlight assemblies are designed for road-use applications, but buyers should still check local inspection requirements. The safest setup is the correct assembly for the truck, connected as intended, with the beam aimed after installation.
When to double-check before ordering
Take a second look before buying if your F-150 has a higher trim lighting package, previous aftermarket wiring, or a model year outside the listed range. The goal is not just to make the assembly bolt on. The low beam, high beam, DRL, side marker, and turn signal should all work as intended.
- Your truck has factory HID, Xenon, or factory LED headlights.
- Your truck is newer than the listed year range.
- You own an F-250, F-350, Super Duty, or F-650.
- You need only one side and the product is sold as a pair.
- Your old headlights already have custom wiring or aftermarket modules.
- You need an OEM Ford part rather than an aftermarket replacement assembly.
Ford F-150 Headlight Assembly FAQ
Q1: Will these headlights fit my 2009–2014 Ford F-150?
A1: They may fit select 2009–2014 Ford F-150 trucks with factory halogen headlights. Confirm the product notes, original headlight type, connector, and whether the listing is for a left and right pair before ordering.
Q2: Will these headlights fit my 2015–2017 Ford F-150?
A2: They may fit select 2015–2017 Ford F-150 models originally equipped with factory halogen headlights. Trucks with factory LED, HID, or Xenon lighting should not be treated as direct matches unless the specific product notes confirm compatibility.
Q3: Do these fit factory HID or Xenon F-150 headlights?
A3: In most cases, no. A headlight assembly built for factory halogen trucks should not be assumed to fit factory HID or Xenon trucks because the wiring, modules, and connectors may be different.
Q4: How do I know if my F-150 has factory halogen, HID, Xenon, or factory LED headlights?
A4: Check the original headlight style, bulb type, connector, owner information, trim package, or VIN-based vehicle details. If the truck has factory LED modules, HID ballasts, or Xenon lighting, do not order a halogen-fit assembly without checking the product notes first.
Q5: Are these headlights sold as a pair or one side only?
A5: Many Hawkglow F-150 headlight assembly listings are sold as a left and right pair, but you should always confirm the individual product title and notes. Pair listings usually include driver side and passenger side assemblies.
Q6: Are these plug-and-play for every Ford F-150 trim?
A6: No headlight assembly should be treated as plug-and-play for every trim. Fitment depends on year, factory headlight type, connector, and product design. Compatible factory halogen trucks are the safest match when the listing confirms that configuration.
Q7: Will the DRL and sequential turn signals work without extra wiring?
A7: It depends on the specific headlight model and the truck’s original wiring. Some DRL or sequential turn signal functions may use an included harness or require following extra wiring notes. Check the instructions before installation.
Q8: Do I need coding, FORScan, or a custom harness?
A8: Most factory halogen replacement applications should be checked against the product notes first. Trucks converted from halogen to OEM-style LED functions may need additional wiring or coding work, especially if the original truck did not have those circuits from the factory.
Q9: Do I need to aim the headlights after installation?
A9: Yes. After installing a new Ford F-150 headlight assembly, the beam should be aimed on level ground. Proper aiming helps reduce glare, improves usable road light, and keeps the cutoff where it belongs.
Q10: Is condensation inside the headlight normal?
A10: A light haze that clears after normal use can happen because headlight housings need to vent heat and pressure. Heavy water droplets, standing water, or fog that does not clear should be inspected for seal, cap, or vent issues.
Q11: Are LED headlight assemblies legal for road use?
A11: Road-use rules can vary by location and inspection process. Use the correct assembly for your truck, connect it as intended, and aim the beam after installation. Buyers should also check local requirements before driving on public roads.
Q12: What is the difference between a headlight assembly and an LED bulb swap?
A12: A headlight assembly replaces the housing, lens, optics, and lighting layout as a complete unit. An LED bulb swap only replaces the bulb. If the old housing is yellowed, cracked, leaking, or poorly aimed, replacing only the bulb may not fix the real problem.
Q13: Will these headlights fit an F-250, F-350, Super Duty, or F-650?
A13: No. Ford F-150 headlights are not the same as F-250, F-350, Super Duty, or F-650 headlights. Use the correct vehicle-specific assembly for those trucks.
Q14: Can I install only one new headlight assembly?
A14: If the product is sold as a pair, it is intended to replace both sides together. Replacing both sides helps keep light output, lens clarity, styling, and beam appearance consistent from left to right.
