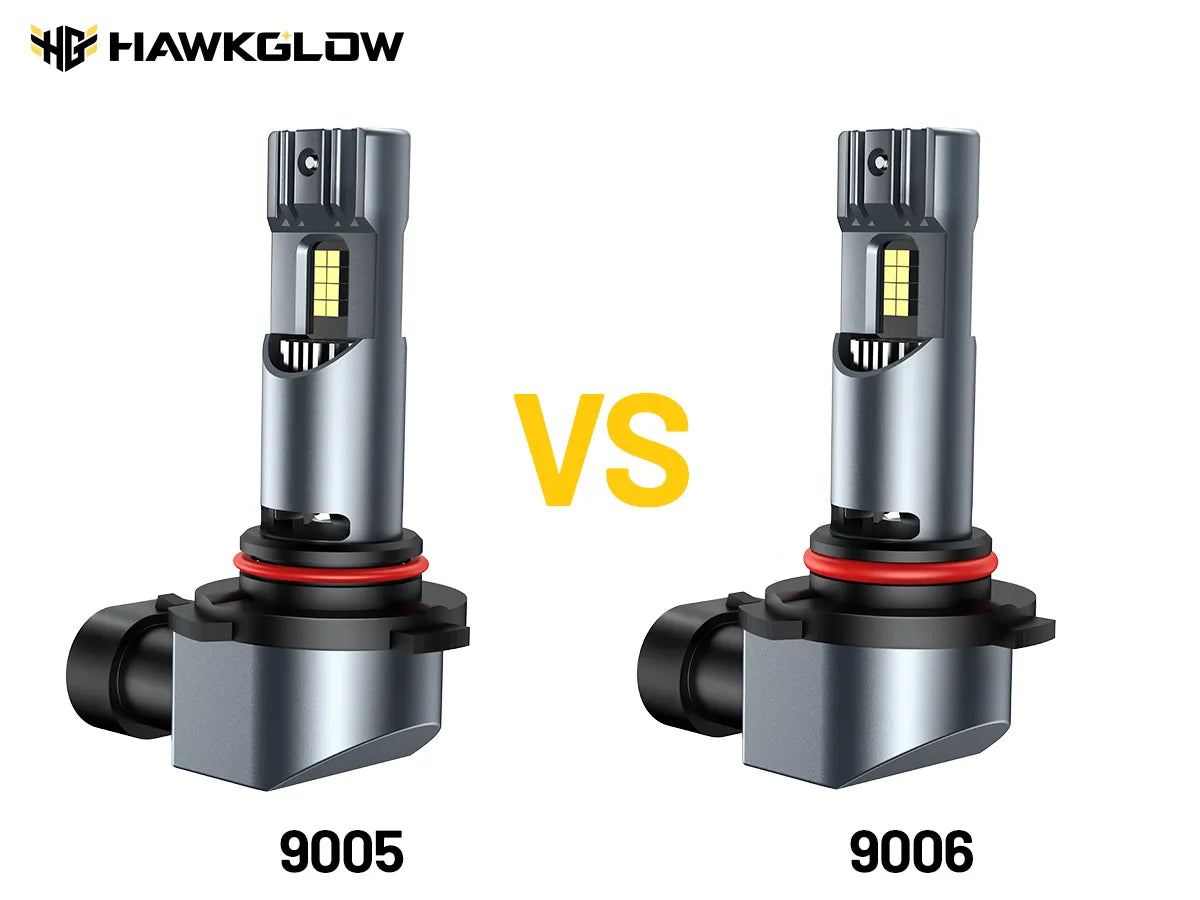

9005 and 9006 bulbs are common choices for automotive headlight systems, often working together to cover both high and low beams. The 9005 is primarily designed for high beams, while the 9006 serves low-beam purposes. Understanding their differences is essential for selecting the right bulb based on specific driving needs, whether it’s for long-range visibility or everyday city driving.

Key Specifications Comparison

Wattage

The 9005 bulb operates at 65 watts, while the 9006 bulb runs at 55 watts. This difference in power usage impacts both brightness and energy consumption.

Brightness (Lumens)

9005 bulbs produce between 1700 and 2000 lumens, offering a brighter output than the 9006 bulbs, which emit between 1000 and 1500 lumens.

Voltage

Both bulbs use a standard 12-volt system, which is commonly found in most vehicles.

Beam Type

9005: Typically designed for high beam applications, providing a focused and intense light output that enhances visibility at greater distances.

9006: Generally used for low beam applications, offering a wider and more diffused light pattern, which is better for illuminating the road without blinding oncoming drivers.

Color Temperature

Both 9005 and 9006 bulbs typically range from 6,000K to 7,500K, providing a bright white or slightly bluish light. This color temperature enhances visibility during nighttime driving.

Bulb Designations

9005: Also known as HB3; primarily used for high beam applications.

9006: Also referred to as HB4; designed for low beam applications.

Function and Applications

9005 Bulb: Designed for high beams, the 9005 projects a bright, focused light over long distances (up to 360 feet). It's ideal for rural or low-light conditions where maximum visibility is required.

9006 Bulb: Best suited for low beams or fog lights, the 9006 emits a broader, softer light, which covers the immediate road without causing glare. It's commonly used in city or highway driving to ensure safety for oncoming traffic.

Durability and Lifespan

9005 Bulb: In halogen form, the 9005 bulb typically lasts between 320 to 1000 hours, depending on driving conditions and usage. This makes it suitable for high beam use, where shorter operation times reduce wear.

9006 Bulb: The 9006 bulb, particularly for low beams or fog lights, has a longer lifespan of 1000 to 2000 hours due to its lower wattage and more consistent use in everyday driving conditions.

Interchangeability and Compatibility

Base Design

The 9005 bulb uses a P20d base, while the 9006 uses a P22d 90° base, making them non-interchangeable without modifications.

Compatibility

The 9006 is more common for low-beam setups, while the 9005 is often reserved for high beams. Although it’s possible to modify a 9005 to fit a 9006 socket, it’s not recommended due to potential alignment and performance issues.

Read More:

Which Should You Choose?

The choice between 9005 and 9006 bulbs largely depends on their intended use. If you're looking for maximum brightness and long-range visibility, the 9005 is the better option for high-beam applications. Its higher wattage and lumen output make it perfect for situations where you need to see further down the road, such as rural driving or off-road conditions. On the other hand, the 9006 is more appropriate for low beams, providing sufficient brightness for everyday driving without creating glare that could be dangerous for other drivers. It's also a good option for fog lights, where a wider light spread is needed.

How to Find The Headlights' Size of My Car?

To find the bulb size for your car's headlights, you can follow these steps:

Owner’s Manual: Check the owner’s manual for your vehicle. It usually specifies the correct bulb types for headlights.

Online Resources: Use online databases or websites that provide bulb specifications based on your car make and model.

Examine the Existing Bulbs: If accessible, remove the current bulb and check for the part number printed on it.

Auto Parts Store: Visit an auto parts store where staff can assist you in identifying the correct bulb type for your vehicle.

FAQs about 9005 VS 9006

1. Is 9005 low beam?

No, the 9005 bulb is primarily designed for high beam applications.

2. Is 9006 low beam?

Yes, the 9006 bulb is specifically designed for low beam applications.

3. Are H11 and 9005 the same?

No, H11 and 9005 bulbs are not the same. They have different designs and functions, with H11 typically used for low beam applications and 9005 used for high beams.

4. Is H11 the same as 9006?

No, H11 and 9006 are different as well. H11 is generally used for low beam headlights, while 9006 is also designed for low beam applications but has a different fit and output.

5. Can I use 9005 instead of 9006?

It is not recommended to use a 9005 bulb in place of a 9006. The 9005 is designed for high beams, while the 9006 is intended for low beams. Using the wrong bulb can lead to improper lighting and may cause glare for other drivers. Always use the bulb specified for your vehicle’s headlight system.

6. 9005 vs. 9006 vs. 9007 Headlight Bulbs

9005: Designed for high beams; produces 1,700–2,000 lumens at 65 watts.

9006: Used for low beams; emits 1,000–1,500 lumens at 55 watts.

9007: Versatile bulb for both high and low beams; brightness similar to 9005.

Conclusion

In conclusion, while 9005 and 9006 bulbs serve different functions in vehicle lighting systems, they complement each other to provide full coverage for various driving conditions. The 9005 excels in high-beam applications, offering brighter light and longer range, while the 9006 is better suited for low beams and fog lights. When selecting between the two, consider the specific needs of your vehicle’s lighting system and the driving conditions you encounter most often. Whether you stick with halogen bulbs or upgrade to LED or HID options, ensuring compatibility and proper installation is crucial for optimal performance and safety.
