If you’re researching headlight upgrades or trying to replace a burned-out bulb, chances are you’ve come across the H9 vs H11 debate. At a glance, these two bulbs look nearly identical—but they aren’t the same. So, can you swap one for the other? If H9 and H11 headlight bulbs are interchangeable, which one is brighter for your vehicle?

In this guide, we break down the key specs, brightness differences, fitment compatibility, and the best LED upgrade options—so you can confidently choose the right solution for your headlights.

H9 vs H11 – Key Specs & OEM Usage

H9 is brighter and more powerful but runs hotter and has a shorter lifespan. H11 is less bright, but lasts longer and is more commonly used for low beams or fog lights. While similar in shape, they are not plug-and-play interchangeable.

🔹 Technical Comparison Table

The most obvious contrast is in power and brightness—H9 runs at a higher wattage and delivers significantly more lumens. However, this added power often results in a shorter lifespan and greater heat output. So, while both bulbs fit a similar physical footprint, they serve very different purposes when it comes to functionality and lighting needs.

Want to learn more about H11 bulbs? Check out our Ultimate Guide to H11 Headlight Bulbs (2025 Edition).

🔹 Original Equipment Use – High Beam vs Low Beam

In most vehicles, H9 is used for high beams, while H11 is typically installed in low beams or fog lights. That’s by design.

• High beams need more throw and raw brightness to illuminate far down the road.

• Low beams prioritize safety, aiming lower and using less power to avoid blinding oncoming drivers.

The applications match their characteristics: H9 prioritizes visibility, while H11 prioritizes safety and efficiency in daily driving.

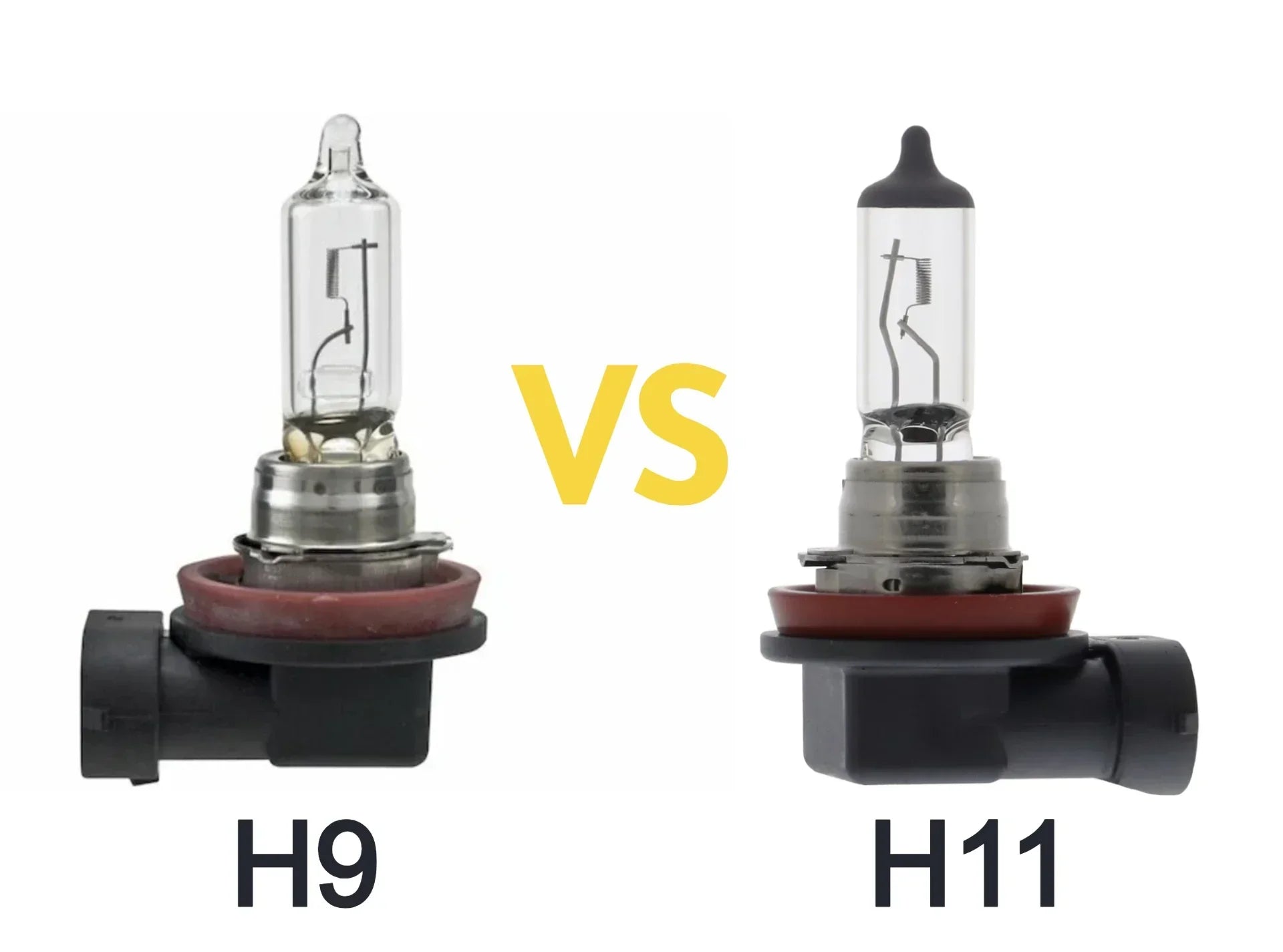

🔹 Physical Similarities and Key Differences

Visually, H9 and H11 bulbs look nearly identical. Same bulb size. Same general shape. But the key difference lies in the base and tab design:

• H9 features a small plastic tab that prevents it from being plugged directly into an H11 socket.

• The base locking design also differs slightly to prevent accidental mismatch.

This means that while they seem swappable, they’re not plug-and-play compatible out of the box. You’ll need a small physical modification to make one fit the other—something we’ll cover in a later section.

H9 vs H11 Brightness – Is H9 Really Brighter?

1. Lumen Output Comparison

Let’s get straight to it—yes, a standard H9 halogen bulb is significantly brighter than an H11 bulb.

• A standard halogen H9 bulb produces about 2100 lumens.

• Meanwhile, an H11 bulb outputs roughly 1350 lumens.

That’s a difference of more than 50% in brightness. If you’re upgrading for better visibility, this spec alone makes H9 a clear winner in terms of raw light output.

It’s the reason H9 bulbs are often chosen for high beams—when you need more throw, more distance, and better visibility at speed.

2. Beam Distance and Pattern Differences

Beyond lumens, what really matters is how the light is projected.

• H9 tends to have a longer, more focused beam that reaches farther ahead—ideal for highways and dark roads.

• H11 has a wider, lower beam pattern, optimized to light up the road immediately in front of you without causing glare.

This design difference also explains why H11 is the go-to for low beams or fog lights, where controlled light and minimal scatter are critical.

Can You Swap H9 and H11 Bulbs? Compatibility Breakdown

1. Plug and Fitment Differences

Though H11 and H9 bulbs share a similar shape, they’re not plug-and-play interchangeable.

• H11 bulbs can often be inserted into H9 sockets with minor modification, such as trimming the tab.

• H9 bulbs, on the other hand, usually won’t fit into H11 sockets without adjustments to the base.

Their base types—PGJ19-2 (H11) and PGJ19-5 (H9)—are intentionally designed to prevent mismatching.

2. Common Modifications for Fitment

If you’re comfortable with DIY mods and still want to use H9 in an H11 socket, here are the most common methods:

• Trim the plastic alignment tab on the H9 bulb using a utility knife or rotary tool so it fits the H11 socket.

• Adjust the metal pins in the bulb connector, which may not align perfectly with the H11 harness.

• Use an H11-to-H9 conversion harness, available online, to adapt the power connection safely.

These mods are especially popular in vehicle communities like Tacoma, F150, and WRX forums, where drivers seek better high-beam or low-beam performance. But they come with important caveats.

3. Risks of Improper Replacement or Forcing Compatibility

Before you grab that knife or buy a harness, consider the risks:

• Electrical overload: H9 bulbs draw more current (65W vs. 55W). If your car’s wiring or fuse isn’t rated for it, you may blow a fuse or melt connectors.

• Beam misalignment: An H9 bulb in an H11 reflector might not sit perfectly, leading to scattered light or dangerous glare for other drivers.

• Warranty voids: Modifying your headlight components could affect OEM warranty coverage or fail local inspection standards.

Pro Tip: If you want H9-level brightness without modifications, consider upgrading to a high-output H11 LED bulb that’s cross-compatible with H9 sockets.

LED Upgrade: Should You Switch from H9/H11 Halogen?

Modern H11 LED headlight bulbs are designed to be cross-compatible with H9 and H8 sockets, offering equal or greater brightness with no need to trim or rewire anything.

Why H11 LED Is a Smarter Choice:

• Most H11 LED bulbs are H9/H11/H8 compatible
• Deliver 6000–8000 lumens per pair (brighter than halogen H9)
• Lower power consumption (~30W per bulb)
• No overheating issues
• No modification required

This is the easiest and safest upgrade path—especially for low beam users or daily drivers.

Vehicle Use Cases: Which Bulb Works Best for Your Car?

Not sure whether to stick with H11, upgrade to H9, or switch to LED? Here’s a quick breakdown based on popular vehicle models and real-world driver feedback.

Note: Some DIY users trim H9 tabs to fit H11 sockets, but this is not recommended due to heat, fitment, and legal compliance concerns. Always refer to your owner’s manual or use a reliable fitment guide before replacing bulbs—especially when considering an H11 to H9 conversion or an H9 LED upgrade.

Final Recommendation: Which Bulb Should You Choose?

If you're simply looking for a brighter and safer headlight option without the hassle of rewiring or modifying your car, a high-output H11 LED bulb is the smartest and most convenient upgrade. These bulbs are often designed to be compatible with H9 and H8 sockets as well, offering excellent brightness—often surpassing traditional halogen H9—while maintaining plug-and-play ease.

For drivers currently using H9 halogen bulbs and looking to upgrade, switching to an H9 LED bulb with the same base type gives you improved brightness and longevity without compromising fitment.

On the other hand, if your vehicle comes stock with H11 and you’re considering swapping in an H9 halogen for more brightness, it’s best to avoid physical modifications like trimming tabs or rewiring. While it might technically work, the risks—including overheating, poor beam focus, or voided warranty—often outweigh the benefits.

In short, whether you're upgrading from H9 or H11, modern LED bulbs are the best solution for improved visibility, better efficiency, and long-term reliability—without the downsides of traditional halogen conversions.

FAQ About H9 vs H11

1. Can you use H11 instead of H9?

Technically, no. H11 and H9 bulbs have different base types—H11 uses a PGJ19-2 connector, while H9 uses PGJ19-5. Even though they look similar, they’re not directly interchangeable. However, many H11 LED bulbs are designed to match or exceed H9 brightness and are compatible with H9/H8/H11 sockets, making them a safer and easier alternative.

2. Does the H11 bulb fit the H9 socket?

No, not without modification. The base tabs and locking design prevent a proper fit between H9 and H11 sockets. H9 bulbs have an extra alignment tab that makes them incompatible with H11 housings unless trimmed. For most users, using an LED bulb designed for cross-compatibility is recommended instead of forcing a fit.

3. How bright is H11 vs H9?

H9 halogen bulbs are significantly brighter—around 2100 lumens, compared to H11’s 1350 lumens. That’s over a 50% difference in output. However, many H11 LED bulbs now exceed 6000 lumens per pair, making them brighter and more energy-efficient than both halogen H9 and H11.

4. Is H9 a high beam?

Yes. In most OEM applications, H9 is used for high beams because of its higher brightness and longer throw distance. In contrast, H11 is typically used for low beams or fog lights due to its lower intensity and wider beam pattern that avoids glare.

5. What is the difference between H9 and H11 on a Tacoma?

For Toyota Tacoma models, both H9 and H11 bulbs can physically fit with minor modifications. However, H11 is the stock bulb used in low beams. Some Tacoma owners replace them with H9 for more brightness, but this requires trimming the tab or using a conversion harness, which is not recommended due to potential electrical and alignment risks.

6. What can I use instead of an H9 bulb?

The best alternative to an H9 halogen bulb is a high-performance H11 LED headlight bulb that offers equivalent or higher brightness and fits H9 sockets. These LED upgrades are plug-and-play compatible in many cases and avoid the heat and short lifespan issues of halogen H9s.

7. What bulbs interchange with H9?

There are no halogen bulbs that natively interchange with H9 due to its unique tab design and high wattage. However, LED bulbs marked as H9/H11/H8 compatible are engineered to replace H9 without modification and often perform better in terms of brightness and efficiency.

8. Is H11 a low beam?

Yes. H11 is most commonly used as a low beam or fog light bulb. It has lower wattage and brightness than H9, making it more suitable for city driving and daily use, where glare needs to be minimized for oncoming traffic.

9. Can I upgrade from H11 to H9 for better brightness?

It is possible, but not recommended for most drivers. H9 requires physical modification to fit an H11 socket and draws more current, which can lead to overheating or warranty issues. A safer upgrade is a premium H11 LED bulb that delivers H9-level brightness with no alterations required.

10. Why are H9 and H11 bulbs not the same if they look similar?

Although H9 and H11 share similar shapes, their internal construction, base design, electrical specs, and OEM applications differ. H9 has higher wattage and a unique locking tab, preventing cross-use without modifications. This is by design—to ensure correct beam patterns and avoid electrical issues.
