Upgrading your headlights to 9005 LED headlight bulbs is one of the easiest and most effective ways to boost nighttime visibility and overall driving safety. If you’re ready to ditch your stock halogen lights for a brighter, more efficient alternative, this guide will walk you through everything you need to know—safely, accurately, and with confidence.

What Is a 9005 LED Headlight Bulb?

A 9005 LED bulb (also known as HB3) is commonly used for high beam headlights in many vehicles. Compared to traditional halogen bulbs, 9005 LED bulbs offer higher brightness, longer lifespan, and lower energy consumption.

Key features:

• Improved road illumination
• Longer service life (up to 50,000+ hours)
• Better energy efficiency
• Whiter, crisper light output for modern appearance

Related reading: What Cars Use 9005 Headlights: A Complete Guide

Tools and Prep Before Installation

Before you start the installation, make sure you have the following ready:

• A pair of 9005 LED headlight bulbs

• Your vehicle owner’s manual(to confirm fitment and bulb location)

• Gloves (to avoid contaminating bulbs)

• Flathead screwdriver or trim tools (if needed)

• Optional: Rubbing alcohol and lint-free cloth

Safety First:

• Turn off the engine and ensure headlights are cool.

• Optional but recommended: Disconnect the vehicle's negative battery terminal to avoid short circuits, especially for modern vehicles with sensitive electronics.

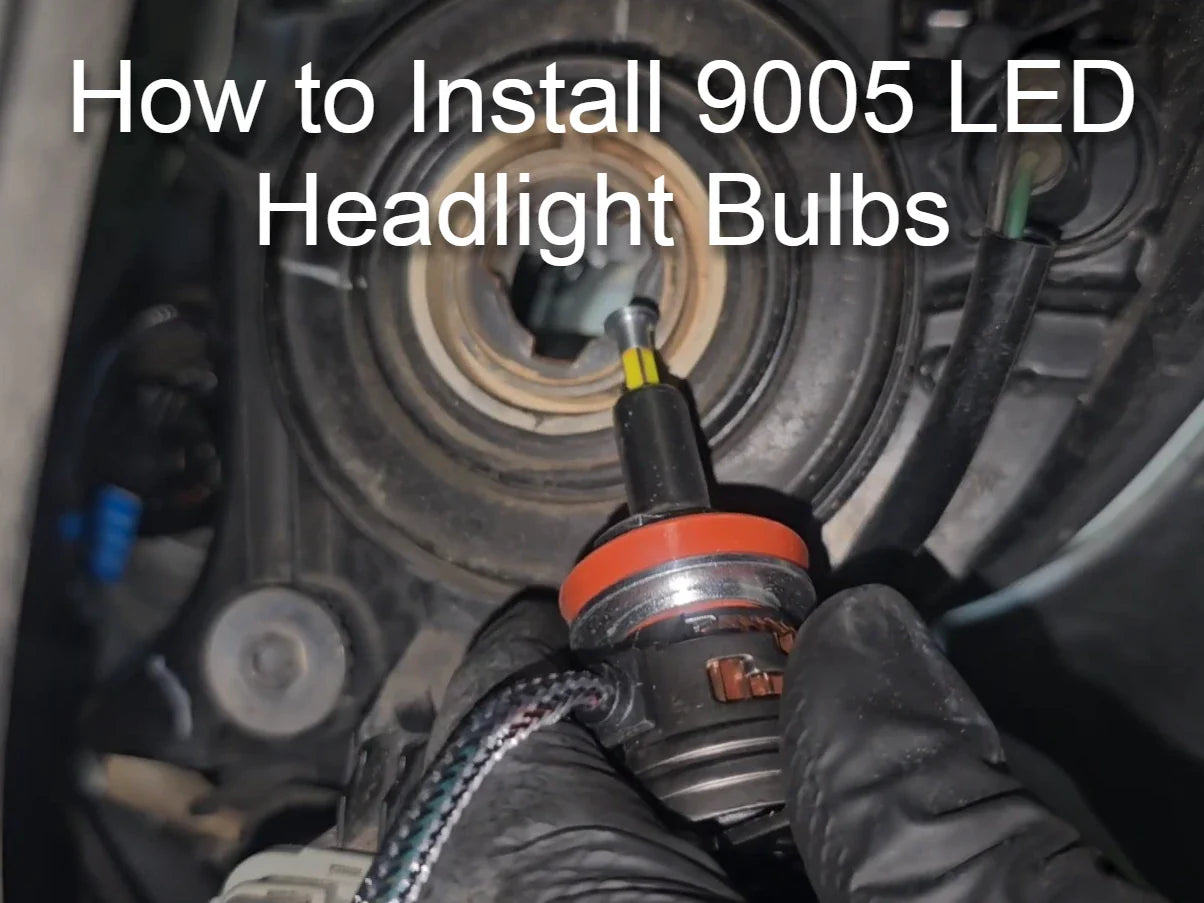

Step-by-Step: How to Install 9005 LED Headlight Bulbs

1. Open the Hood and Access the Headlight Assembly

Locate the back of the headlight housing. In some vehicles, this area may be covered with a dust cap or surrounded by other components.

2. Remove the Dust Cover (if applicable)

If there's a dust cover protecting the housing, gently twist or pry it off. Use a trim tool or screwdriver if access is tight.

3. Disconnect the Wiring Harness

Press the release tab and pull the connector away from the bulb. This may require a slight wiggle—avoid excessive force.

4. Remove the Old Bulb

• Twist the old 9005 halogen bulb counterclockwise to unlock it.

• Gently remove it from the socket.

5. Install the New 9005 LED Bulb

• Align the LED bulb's three tabs with the notches in the headlight socket. Typically, there are two curved tabs and one small rectangular tab.

• Insert the bulb and twist clockwise to lock it into place.

• Ensure the LED chips are facing the 3 o’clock and 9 o’clock positions for optimal beam pattern.

6. Reconnect the Wiring Harness

Attach the connector to the new bulb until it clicks. If the bulb doesn't light up during testing, unplug and flip the connector 180 degrees (polarity matters for LEDs).

7. Reassemble the Housing

Replace the dust cover and tuck any excess wiring away from the light source or fan.

8. Test the New Bulbs

Turn on your headlights and switch to high beam. Confirm both bulbs are working and emitting a clear, uniform beam pattern.

Common Questions About Installing 9005 LED Bulbs

1. Is the 9005 bulb for high or low beams?

The 9005 LED headlight bulb is primarily used for high beams, but some vehicles may use it for low beams or fog lights. Always refer to your owner's manual.

2. What is the correct headlight bulb position?

The correct position for a 9005 LED bulb is with the LED chips facing 3 o’clock and 9 o’clock. This ensures a proper beam pattern that mimics halogen filament placement, preventing glare and providing optimal road illumination.

3. Is 9005 both high and low beam?

9005 bulbs are primarily used for high beams, but some vehicles may use them for low beams or fog lights. Always confirm your specific application in the owner’s manual or by checking your existing bulb.

4. How to install a 9005 headlight bulb?

To install a 9005 LED bulb:

1. Turn off the engine and disconnect the battery (optional for safety).
2. Access the back of the headlight housing and remove the dust cover.
3. Unplug and twist out the old bulb.
4. Insert the new bulb, align tabs, and twist to lock.
5. Reconnect the wiring and test the light.
6. Reinstall the dust cover and close the hood.

5. What is equivalent to a 9005 bulb?

The 9005 bulb is also known as HB3. It may be interchangeable with some other types like H10 or 9145 in certain applications, but always check wattage, base type, and fitment before substituting.

6. Why is my LED bulb flickering or not turning on?

This is usually due to polarity mismatch or a CANbus system incompatibility. Try reversing the connector or installing a decoder module.

7. Can I touch the LED bulb during installation?

No. Avoid touching the LED chip or glass area with bare hands. If contact occurs, clean the surface with alcohol and a lint-free cloth to prevent damage or reduced lifespan.

8. Do I need a fan or heatsink with LED bulbs?

Most quality 9005 HB3 LED headlight bulbs include built-in cooling systems. Choose a brand with good thermal management for longevity.

Post-Installation Tips for Optimal Performance

• Check the beam alignment: Make sure the light pattern is horizontal and not glaring.

• Adjust the angle: Slight tilts can drastically affect road visibility and glare for other drivers.

• Stick to DOT-approved color temperatures: 6000K-6500K or below is ideal for safe and legal road use.

• Avoid obstructing the fan or airflow: Ensure nothing is pressing against the cooling system of the LED bulb.

Final Thoughts

Upgrading to 9005 LED headlight bulbs is a smart and impactful improvement to your vehicle’s lighting system. With their bright, clear output and long-term reliability, these bulbs not only enhance your visibility but also modernize your car’s appearance.

Take your time during installation, follow this guide step by step, and enjoy the improved clarity and confidence every time you drive at night.
