When you're shopping for lighting solutions or evaluating LED headlights, you'll encounter several technical terms such as lux and lumens. Although these terms appear similar, they represent fundamentally different measurements. In this comprehensive guide, we’ll thoroughly explain lux vs lumens, clarify the difference between lux and lumens, and show you how to effectively use each measurement in practical applications.

What is Lumen? The Measure of Total Light Output

Before diving into lux vs lumens, it's essential to clearly define each term individually. A lumen (lm) is the international (SI) unit of luminous flux. In simpler terms, lumens quantify the total amount of visible light emitted by a light source in all directions. Think of it as the volume or quantity of light that a bulb or LED chip produces. If you imagine a hose spraying water, the lumens would be the total amount of water coming out of the hose, regardless of where it lands.

Lumens are an intrinsic property of the light source itself. A light bulb's lumen rating tells you how much light it's capable of generating under ideal conditions. This measurement is typically performed in a specialized laboratory setting using an integrating sphere, which captures all the light emitted from the source. When you buy a light bulb or an LED product, its advertised brightness is almost always expressed in lumens.

It's crucial to understand that lumens should not be confused with watts. While traditional incandescent bulbs often had a direct correlation between wattage (power consumption) and brightness, modern energy-efficient technologies like LEDs can produce significantly more lumens per watt. Therefore, lumens provide the most direct and accurate indication of a light source's overall brightness potential.

For a deeper dive into the fundamental understanding of lumens, read our comprehensive guide: What are Lumens? Understanding LED Headlight Brightness

What Is Lux? The Measure of Light on a Surface

Now, let's turn our attention to lux. While lumens tell you how much light a source emits, lux (lx) measures the intensity of illumination on a specific surface area. It is the SI unit of illuminance. Continuing our water analogy, if lumens is the total water coming out of the hose, lux would be how much water is landing on a specific square foot of ground.

The key distinction for what is lux is that it's a measure of received light, not emitted light. The lux measurement on a surface is highly dependent on several factors:

• The lumen output of the light source: A higher lumen output generally leads to higher lux if all other factors are equal.

• The distance from the light source: As light spreads out, its intensity diminishes over distance. A light source producing X lumens will result in a lower lux measurement on a surface farther away.

• The beam angle/spread of the light: A narrow, focused beam will concentrate its lumens onto a smaller area, resulting in a higher lux reading. A wide, diffused beam will spread its lumens over a larger area, leading to a lower lux reading.

• The reflectivity of the surface: While lux measures light hitting a surface, the surface's reflectivity affects how much light is reflected back, which impacts perceived brightness.

A lux meter (or light meter) is used to perform a lux measurement, providing a precise reading of the light intensity at a specific point on a surface. This allows professionals to assess whether a given environment meets recommended illumination levels for various tasks, from office work to surgical procedures. When people ask what is lux unit or what does lux measure, they are referring to this critical measure of light intensity on a surface.

Lux vs. Lumens: The Core Difference & Interconnection

The fundamental difference between lux and lumens lies in their perspective: lumens describe the light source, while lux describes the illuminated surface. They are not interchangeable, and understanding this distinction is key to proper lighting design and application.

Let's illustrate the difference between lux and lumens with a common scenario: Imagine a 1000-lumen light bulb.

• If you hold that bulb right next to a wall, the lux measurement on that small spot of the wall will be very high.

• If you move that same 1000-lumen bulb 10 feet away, the lux measurement on the wall will be significantly lower because the same amount of light (1000 lumens) is now spread over a much larger area.

This example clearly demonstrates why is lux same as lumens is a crucial question to answer with a definitive no. They are distinct yet interconnected concepts. One cannot exist without the other; a light source must emit lumens for any surface to receive lux.

Key Differences Between Lumens and Lux:

Lux to Lumens Conversion: When and How?

One of the most common questions in lighting is about lux to lumens conversion or how to convert lux to lumens. It's important to state upfront: there is no simple, universal conversion factor between lux and lumens because lux depends on distance and area.

The basic formula for lux to lumens for a uniformly lit surface is:

Lumens (lm) = Lux (lx) × Area (m²)

Conversely, to find Lux if you know Lumens and Area:

Lux (lx) = Lumens (lm) / Area (m²)

However, this formula assumes perfect, uniform illumination over the entire area, which is rarely the case in real-world scenarios. Light sources have beam angles, and light intensity typically follows the inverse square law (intensity decreases with the square of the distance).

Therefore, achieving a precise lux to lumens conversion or accurately converting lux to lumens often requires more complex calculations or specialized photometric software that accounts for beam patterns, distances, and reflections. For practical purposes, when you know the desired lux level for a specific task or space (e.g., 500 lux for an office desk) and the area, you can estimate the minimum total lumens required from your light source. This is why understanding converting lux to lumens can be valuable for lighting designers.

Practical Applications: Why Both Lux and Lumens Are Essential

Both lux and lumens play critical roles in different aspects of lighting. Understanding their respective uses helps in making informed decisions.

1. Automotive Headlights: A Dual Perspective

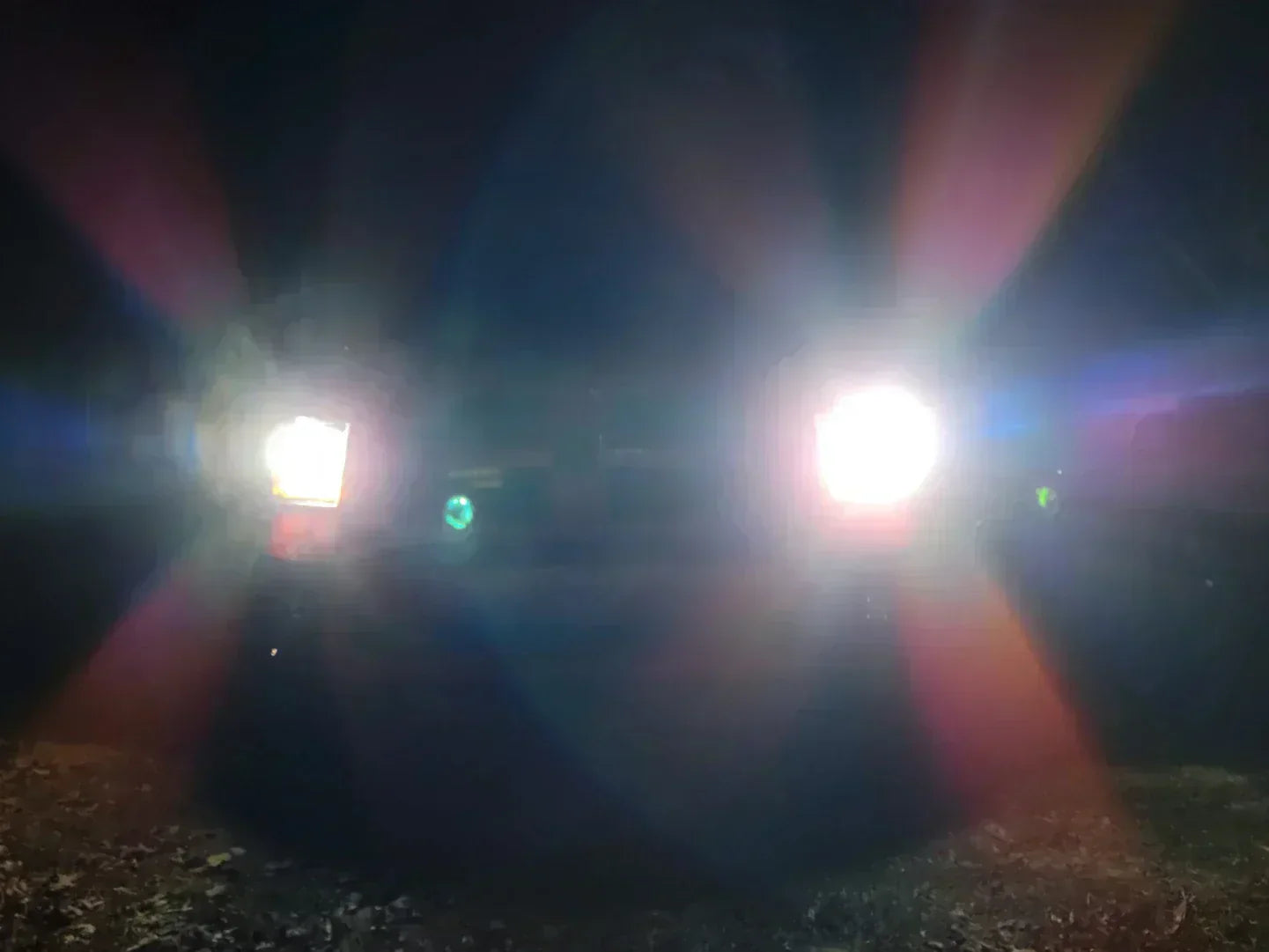

When it comes to car headlights, the interplay between lumens and lux is paramount for both driver visibility and road safety.

Lumens in Headlights (Total Output Potential):

• When discussing how many lumens is a car headlight, we're primarily referring to the total light output capacity of the headlight bulb itself. A higher lumen rating for an LED bulb, for instance, means it has the potential to produce a greater amount of light. This is often the headline figure you see advertised for aftermarket LED or HID bulbs, indicating the raw light-generating power.
• For a high-performance high lumen headlamp to be effective, it starts with a strong lumen output. However, this alone doesn't guarantee superior road illumination.

Lux in Headlights (Effective Road Illumination & Safety):

• This is where lux becomes absolutely critical. For a car headlight, what truly matters for driver visibility and the safety of others is the lux measurement on the road surface at various distances ahead of the vehicle. Lux indicates how brightly a specific point on the road is actually illuminated.
• Imagine a powerful 6000-lumen LED headlight bulb. If this light is simply scattered broadly without proper focus, it might produce immense total light (lumens), but the lux measurement on the critical areas of the road ahead (like 50 meters down the lane) could be surprisingly low. Worse, a poorly controlled high-lumen light can lead to dangerous glare for oncoming drivers, despite seemingly high brightness.
• Regulatory bodies (like DOT in the US or ECE in Europe) set specific lux requirements at defined points and distances on the road. These standards ensure that headlights provide sufficient illumination for the driver to see obstacles while simultaneously controlling scattered light to prevent blinding other road users. This is why a simple lux to lumens conversion isn't sufficient for headlights; the beam pattern is everything. A high-lumen bulb with a precise, controlled beam pattern will deliver superior lux on the road surface where it counts, ensuring both optimal visibility for you and minimal glare for others.

2. Indoor Lighting:

• Lumens for Fixture Selection: When you're buying a new light fixture for a room, you'll look at its lumen output to ensure it provides enough overall light for the space. For instance, a small bedroom might need 1500-2000 lumens, while a large living room could require 4000-6000 lumens.

• Lux for Task Lighting: In a kitchen, you might need a general ambient lumen output, but specifically over the countertop where you prepare food, you'd want a certain lux measurement (e.g., 500 lux) to ensure adequate visibility for detailed tasks. An office desk would also require a specific lux level for comfortable reading and computer work.

3. Photography and Cinematography:

• Lumens or similar units might describe the total output of a studio light.

• Lux (or Foot-candles, its imperial counterpart) is used to precisely measure the light hitting the subject or scene, crucial for correct exposure and lighting ratios.

4. Plant Growth Lights:

• Lumens indicate the total visible light produced.

• However, for plant growth, specific wavelengths and intensities (often measured in PAR - Photosynthetically Active Radiation, which can be correlated to lux for visible light spectrum) are more critical on the plant's surface.

How to Properly Assess Your Automotive Headlight Needs (and Other Lighting)

To effectively light any space or application, understanding lux vs lumens is paramount. When it comes to automotive headlights, this understanding becomes even more critical for safety and compliance. Here's a practical approach tailored to vehicle lighting:

1. Define Your Driving Environment & Needs:

• Urban vs. Rural: Do you primarily drive in well-lit cities, where excessive lumens can be overkill and potentially cause glare, or on dark rural roads where maximum safe illumination is desired?
• Weather Conditions: Frequent fog, heavy rain, or snow might influence the preferred light color temperature and beam pattern, even with high lumens.
• Driving Habits: Do you often drive at night? What speeds do you typically maintain? Higher speeds require longer visibility distances, which translate to higher effective lux on the road far ahead.

2. Understand OEM vs. Aftermarket Lumens:

OEM Systems: Your vehicle's original headlights are engineered to meet strict safety and lux distribution standards. Their lumen output (often around 700-1200 for halogen, 2000-3200 for HID, and 1500-4000 for LED per bulb) is carefully balanced with their optical design to provide safe illumination.

Aftermarket Upgrades: When considering high lumen LED bulbs or high lumen headlamp conversions, be cautious. As discussed, some aftermarket bulbs may claim very high lumens (e.g., 10,000+), but without a precisely engineered beam pattern designed for your specific headlight housing, this can result in:

• Fore-ground glare: Too much lux directly in front of the car, which can actually reduce your distance vision.
• Scattered light: Light going upwards into oncoming drivers' eyes (causing glare) or wasted by going off-road.
• Poor hotspot formation: Insufficient lux at critical distances down the road.

3. Prioritize Beam Pattern & Optical Control over Raw Lumens:

• A bulb with moderate lumens (e.g., 3000-4000 lumens per bulb) that has an excellent, focused beam pattern will often outperform a 6000-lumen bulb with a poor or scattered beam in terms of effective lux on the road and glare control.
• When looking at aftermarket LED bulbs, seek out designs that mimic the original filament location (for reflector housings) or are specifically designed for projector housings. Check for cut-off lines in reviews and test videos.
• The goal is to achieve the best possible lux measurement on the road where it's needed, not just the highest total lumens from the bulb itself. At Hawkglow, we prioritize bulbs that not only deliver impressive lumen output but are also engineered for precision beam control, ensuring effective lux where you need it most.

4. Always Check Legal Compliance (Legal Headlight Brightness):

• Before purchasing any aftermarket headlight product, research your local and state/provincial laws regarding legal lumens for headlights and beam patterns. Many jurisdictions have specific regulations to prevent dangerously bright or improperly aimed lights.
• A product might boast high lumens, but if it causes excessive glare, it's unsafe and potentially illegal. Ensuring your headlight brightness legal limit is within bounds is non-negotiable.

5. Consider Professional Installation & Aiming:

• Even the highest-quality high lumen headlamp requires proper installation and aiming. Incorrectly aimed headlights, regardless of their lumens, can severely compromise your visibility and create dangerous glare for others.
• A professional can accurately measure the lux output and beam pattern after installation, ensuring compliance and optimal performance.

6. Avoid Common Pitfalls:

• Higher Lumens Always Means Better Vision: As discussed, this is a dangerous oversimplification. Focus on effective lux on the road, not just raw lumens.
• Ignoring Housing Type: Placing an LED bulb designed for a projector into a reflector housing, or vice-versa, will almost always result in a terrible beam pattern and excessive glare, regardless of the bulb's lumens.
• Believing All Advertised Lumens: Be skeptical of inflated lumen claims, especially for very cheap bulbs. Reliable brands provide realistic figures and often have third-party testing. At Hawkglow.com, we believe in transparent, accurate lumen ratings backed by rigorous testing, so you can trust the performance you're investing in.

By adopting this comprehensive approach, which carefully considers both the total lumens of an automotive light source and the critical lux measurement it delivers on the road, you can ensure your vehicle's headlights provide optimal illumination, enhance your safety, and comply with regulations, leading to a truly superior driving experience in any condition.

Conclusion: Illuminating Understanding in Light Measurement

The intricate relationship between lux and lumens forms the bedrock of effective lighting design and evaluation. While lumens quantify the total light emanating from a source, representing the output potential, lux measures the actual intensity of light received on a specific surface, reflecting the illumination effect.

Understanding the fundamental difference between lux and lumens is no longer just for lighting professionals. For everyday consumers, especially when considering upgrades like LED headlights or optimizing home lighting, grasping these concepts empowers you to make smarter, more effective choices. They are not competing metrics but rather complementary ones, providing a comprehensive picture of how light is produced, distributed, and ultimately perceived. By considering both the total lumens of a light source and the desired lux measurement on your target surface, you can ensure optimal visibility, comfort, and safety in any illuminated environment.

FAQs About Lux and Lumens

Q1: Is lux the same as lumens?

No, they are different. Lumens measure the total light output of a source, while lux measures the intensity of light falling on a specific surface area.

Q2: Can I convert lux to lumens directly?

Not directly or with a fixed factor. Converting lux to lumens requires knowing the illuminated area, as Lumens = Lux × Area. This formula assumes uniform illumination, which is ideal.

Q3: Which is more important for a car headlight: lux or lumens?

Both are important. Lumens indicate the bulb's total light output, but lux is critical as it measures the actual light intensity illuminating the road surface at various distances, directly impacting driver visibility and safety.

Q4: What is a good lux level for an office space?

General office tasks typically require 300-500 lux. For detailed work, higher lux levels (e.g., 750-1000 lux) may be recommended.

Q5: If I double the lumens, will I double the lux?

Not necessarily. Doubling the lumens will increase the lux, but the precise increase in lux depends on factors like distance, the light's beam angle, and the reflectivity of the surface being illuminated.

Q6: What is the primary difference between lux and lumens?

The primary difference between lux and lumens is that lumens describe the total light emitted by the source, while lux describes how much of that light lands on a specific surface.

Q7: What are the differences between lumen, lux and candela？

Each unit serves a specific purpose:

• Lumens measure total light output from a source.


• Lux measures how much of that light lands on a surface.


• Candela measures the intensity of light in a particular direction.
  They’re not redundant—they help describe light in different contexts like brightness, focus, and reach.
